What is Filter Cloth of Belt Pressure Filter?





Filter press cloth is applied in industries such as dyes and pigments, metallurgy, mining, chemicals,etc as an effective and affordable equipment of solid-liquid separation. As an essential factor of filter press, filter cloth plays an important role to ensure clear filtration, dry filter cake and short filter cycle.

Advantages of Filter Cloth of Belt Pressure Filter

Wear resistance and good value for money

This kind of filter cloth has the advantages of ordinary felt-like felt cloth, that is, it has good wear resistance and cost-effectiveness, will not pill easily, and has no static electricity when used.

Good heat resistance

The filter cloth of the belt filter press has high strength and good heat resistance. It can be used in high temperature situations. It is very strong and durable and has high thermal stability. Even if it works in harsh environments, it will not be damaged. Etc.

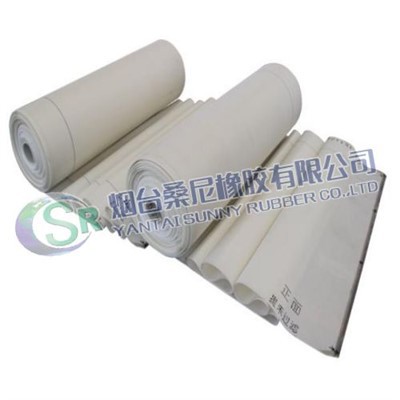

Filter Cloth Of Belt Pressure Filter
Monofilament Filter Cloth Used in Filtration Equipment

Good water absorption

The elasticity of filter cloth is close to that of wool, and its water absorption and insulation properties are very good. Therefore, it is widely used in various industries. The price of filter cloth for filter presses is also rising.

Playing an important role in the industrial sector

Filter cloth plays an important role in the industrial industry. It is an indispensable accessory of filter press equipment. It can quickly filter impurities and suspended solids and maintain normal moisture. Therefore, we must carefully inspect the product before and after use. Do not use damaged products.

How to Choose Filter Cloth of Belt Pressure Filter


First, when selecting the filter cloth, we must refer to the specifications of the filter cloth. Now the filter cloth has various forms. The functions of these different types of filter cloth are different, and the performance and quality of the filtered products are not the same. Nowadays, many people choose the filter cloth to pursue the low price and neglect the quality of the product. In fact, this is very bad. One of our engineers specially put forward: A filter press is not necessarily the best filter cloth. But it must be the most effective for filtered products.



Second, the filter cloth should also refer to the filter plate that matches with it when selecting. The two must work in coordination to achieve the normal operation of the equipment, in order to increase the contact between the filter cloth and the bracket. When installing the filter cloth, it must be strictly monitored to make sure there is no problem in the seal to start working.



Of course, in fact, it is not enough to follow the above two standards when selecting the filter cloth of the vacuum belt filter press. Because the filter cloth has a special function for the filter press, it is very difficult to select the filter cloth very well. When purchasing filter cloth, it is best to choose a suitable high quality filter cloth together with professional and experienced personnel.

Application of Filter Cloth Of Belt Pressure Filter



Environmental protection

Vbf cloth used in vacuum horizontal belt filters supports environmental protection efforts by enabling efficient solid-liquid separation in wastewater treatment, industrial filtration, contaminant removal, and resource recovery processes.





Chemical production

Vbf cloth is an essential component in chemical processing, enabling effective solid-liquid separation, filtration, catalyst recovery, and slurry dewatering. It helps enhance product quality, minimize waste generation, and promote sustainable practices in the chemical industry.





Mining production

Vbf cloth plays a crucial role in solid-liquid separation, dewatering, and clarification processes in the mining industry. It enables more efficient management of mineral concentrates, tailings, and process liquids, contributing to improved environmental sustainability and responsible mining practices.



What Role Does Filter Cloth Play in a Filter Press


The first role that the filter cloth plays in the filter press is to intercept, separate and separate. That is to say, when the filter press is filtering, the liquid in the mixed liquid is dialyzed out by the filter cloth, and the solid particles that cannot pass through the filter cloth are intercepted by the filter cloth, thus separating the solid and liquid in the mixed liquid. Separated, the basic purpose of applying a filter press is to achieve the effect of solid-liquid separation. This is also the core role that filter cloth plays in the filter press, and it is also the fundamental reason why filter cloth cannot be replaced by other substances. This function can be reflected in all filter press equipment, whether it is a chamber filter press, a vertical filter press, or a belt filter press.




The second role of filter cloth in the filter press is sealing. This is reflected in the horizontal filter press. The filter chamber of the horizontal filter press has filter plates that are tightly pressed together by pressure, because the filter plates are made of melted polypropylene. , and no matter how much pressure is used and how smooth the surface is polished, the filter chamber cannot be sealed. There is a gap between the plates. This is because the filter cloth is added between the filter plates. Under the squeeze of pressure, the filter cloth can be deformed appropriately to make up for the unevenness of the filter plate of the filter press, completely isolating the filter chamber from the outside, and creating the necessary gaps for the sealing conditions required when the horizontal filter press is working. Filling agent, so the filter cloth plays a sealing role in the horizontal filter press.




The filter cloth also plays a role in transmission. This function is based on the belt filter press. The belt filter press can discharge the solids intercepted by the filter cloth. It is a conveyor belt to achieve this purpose, and the filter cloth can be in good contact with the solids. Therefore, the belt filter press removes the originally separated filter cloth. They are spliced together to form a filter cloth belt ring connected head to tail. By rotating the filter cloth belt ring, the solids accumulated on the filter cloth can be taken out of the equipment. This is Lu Bu's teleportation effect.



How to Clean Filter Cloth Of Belt Pressure Filter





Using A Pressure Sprayer
When filtration cycles become too long or the initial filtration pressure is too high, it’s time to clean the cloths. One of the easiest ways to accomplish this is by using a portable cold water pressure sprayer, as the plates do not need to be removed from the filter press. However, care must be taken when using a pressure sprayer to ensure that the cloths are not damaged. By using a fan-shaped spray pattern and staying back a few feet from the surface, the cleaning process can be accomplished without accidentally cutting the cloths. Keeping the spray pressure under 1,000 psi is recommended as well.



Acid Wash As An Option For Specialized Applications
When working with sludge from metal finishing, or a lime-based slurry where even the best-matched cloths can blind after a short period of time, the most practical method of cleaning your cloths without removing them from the press may be acid washing. Note: Acid washing is only an option if the chemistry of the sludge is reversible. Therefore, acid washing is not effective in situations that include laundry, food waste, and biological applications.



The Preferred Choice For An Acid Wash Cleaning Solution Is Hydrochloric (muriatic) Acid
Sulfuric acid is not recommended if calcium is present, as gypsum will form, permanently blinding the cloths. Nitric acid is not appropriate, as it is an oxidizing agent. Phosphoric acid is also not the ideal choice, as it is cost prohibitive. A cleaning solution that is from 5 to 10% hydrochloric acid, with the remainder being water, should be used as a starting point.



Cloths made of polypropylene can be safely cleaned in hydrochloric acid. This type of cloth material can handle a variety of acidic cleaning solutions. However, cloths made of other materials, such as nylon, should not be exposed to very low ph levels.

What is Rubber Diaphragm?





Rubber diaphragm are a crucial component used in a wide range of industries, offering numerous advantages due to their versatility and functionality. These flexible membranes play a vital role in controlling the flow of fluids and gases, making them indispensable in various applications. In this article, we will delve into the world of rubber diaphragms, exploring their functions, applications, materials used in their manufacturing, factors to consider when selecting them, and the maintenance required for optimal performance.



Advantages of Rubber Diaphragm

Stability
The Rubber Diaphragm Has Good Elasticity And Wear Resistance, And Can Maintain A Stable Working Condition Under High Pressure, Ensuring The Normal Operation Of The Pressure Reducing Valve.



Accuracy
The Rubber Diaphragm Can Be Customized As Needed To Meet The Needs Of Different Pressure Levels And Improve The Accuracy Of The Pressure Reducing Valve.



Safety
The Rubber Diaphragm Has Good Sealing Performance, Which Can Prevent Fluid Leakage And Ensure Safe Operation.



Durability
The Material Of The Rubber Diaphragm Has Good Corrosion Resistance And Wear Resistance, Which Can Extend The Service Life Of The Pressure Reducing Valve.

HVPF Special Filter Cloth For High-precision Filtration

How And Where Are Rubber Diaphragms Best Used





Rubber diaphragms have a wide range of applications, but are most often used in environments where pressure differentials are present. With low fluid permeability and the ability to flex from side to side, rubber diaphragms act as a sealing solution while providing a consistent pressure differential.



Elastomers, and rubber in particular, are a great material to use for diaphragms due to their elastic properties. Rubber diaphragms allow for a wide range of pressure differentials while remaining durable and flexible.



The versatility in size, thickness and flexibility means diaphragms can be found in everything from pumps to regulators, meters, accumulator tanks and beyond. Customized rubber diaphragms are often found in specialized devices.


How Are Rubber Diaphragms Made

Diaphragms made only of rubber are called homogeneous rubber diaphragms. In this case, the diaphragms are typically compression molded because they’re so thin. It’s difficult to make a thin, flexible membrane through injection molding or transfer molding.



Some rubber diaphragms, however, are reinforced with fabric to enhance durability. In this case, fabric like cotton or kevlar will be sandwiched between two layers of rubber during production.



This process requires very high attention to detail by the machine operator as it’s easy for the fabric to slide around and end up out of place. Sometimes pre-molding the fabric helps prevent movement or creases, but beware: An under qualified machine operator may end up wasting quite a bit of rubber when producing their first fabric-reinforced diaphragms.

How to Choose Rubber Diaphragm





Process Media
The material of the rubber diaphragm should be chemically compatible with the process media, meaning it should be able to resist corrosive damage if the process media is acidic or caustic. Additionally, if the process media is laden with particulates and solids, it should be able to withstand wear and friction.



Operating Conditions
Whether the diaphragm is exposed to high temperatures or low temperatures and high pressures or low pressures, it should be able to maintain the desired performance levels throughout its flex life.



Flex Life
Flex life is the amount of time a diaphragm can be used in a certain application before it requires replacement. Ideally, you should choose a diaphragm that offers the greatest mean time between replacements (mtbr).



Sanitary Standards
Some industries have strict sanitary standards, such as the food and beverage industry or the pharmaceutical industry. If a diaphragm is intended to be used in these industries, it must comply with the relevant sanitary standards.



The total cost of a rubber diaphragm includes many factors, including initial purchase price, rated flex life, replacement costs, and profit loss due to downtime. The rubber diaphragm you choose should suit your application requirements and your budgetary restrictions.


Application of Rubber Diaphragm

The function of a diaphragm is an important factor that depends on its application. The basic diaphragms are designed to turn from one position to another. A few examples of simple rubber diaphragms are pressure switches or solenoid valves. For modulating devices, like regulators, the diaphragm requires to come back to the exact corresponding position. The important factors here are the even spring rate, flexibility, and a minimal modification in the effective area.



Diaphragms are also used as dampening gadgets in pulsating systems or shock absorbers in dashpots. Diaphragms in pulsating systems reduce the elevated pressure spikes and smoothen out the flow of gas or fluids, creating a uniform flow. They act as barriers between gases and fluids, like in a pressure drop on the fluid end. This makes the compressed gas expand against the diaphragm in order to maintain fluid pressure.



Diaphragms are also used in pumps like automobile fuel pumps, diaphragm air compressors, and hand pumps. Here, an external mechanical force actuates the diaphragm which performs to dislodge a volume of media. In case of a pump, the diaphragm generates a depleted pressure area which makes the gas or liquid to move in that area.



In all of these cases, the diaphragm’s function will be the determining factor. This depends on the kind of construction, the composition of the material, the fabric design, and the polymer type. Diaphragm applications are versatile and can be used in numerous applications. However, it is important to choose the right diaphragm that matches the application’s requirement.

FAQ

Q: What is the use of filter press cloth?

A: Filter press cloth is applied in industries such as dyes and pigments, metallurgy, mining, chemicals,etc as an effective and affordable equipment of solid-liquid separation. As an essential factor of filter press, filter cloth plays an important role to ensure clear filtration, dry filter cake and short filter cycle.

Q: How long does filter cloth last?

A: Cloth life varies from installation to installation and depends on such variables as frequency of cycles, proper cleaning and maintenance and the type of sludge that is generated. Generally speaking for most installations cloths can last up to 6 months at the most.

Q: Does water go through filter cloth?

A: The filter fabric is porous, and acts like a barrier to separate the soil from the drain. It gets clogged with fine soil, but not really different from the soil the water is passing through to get there. So you have a lot of water collecting in the soil over a very large area.

Q: Do I need filter fabric?

A: Filter fabric, also known as a geotextile, functions as a permeable filter to prevent soils, sediments and nutrients from migrating into the drainage gravel. This ensures water can flow freely to a safe outlet. Without filter fabric, that debris can build up, clog and obstruct key drainage channels.

Q: What filter fabric means?

A: Fabric filters used for controlling particulate matter (figs. 20-4 and 20-7) operate like a vacuum cleaner. Dirty gas is blown or sucked through a fabric filter bag. The fabric bag collects the dust, which is removed periodically by shaking the bag.

Q: What is filter fabric made of?

A: Polypropylene (pp), polyethylene (pe), and polyester (pet) fibres are the three major synthetic fibres for making filter media of large quantities.

Q: What is a filter cloth called?

A: Nylon filter cloth is known for its ability to withstand basic environments and for its ability to prevent adhesion and moisture regain. This makes it a favoured filter media for filter press cloths or filter belts.

Q: What is the use of filter cloth?

A: Filter cloth is widely used in various industries for as an important filtration media in mine, coal, metallurgy, chemical and dyestuff industries where solid-liquid separation is essential.

Q: How long does filter cloth last?

A: Cloth life varies from installation to installation and depends on such variables as frequency of cycles, proper cleaning and maintenance and the type of sludge that is generated. Generally speaking for most installations cloths can last up to 6 months at the most.

Q: How do you clean a cloth filter?

A: Use a 25% solution of hydrochloric (muriatic) acid. A lower or higher concentration may be necessary due to solubility levels of entrapped particles. Note: Extreme care must be taken when handling acid. Use a low-pressure (20-30 psi max) acid resistant pump.

Q: What is diaphragm rubber?

A: A rubber diaphragm is a flexible membrane that's usually circular in shape and anchored around the edges. The main function of a diaphragm is to act as a seal between two chambers. Rubber diaphragms come in a huge variety of shapes and sizes, as well as custom moulded diaphragm configurations.

Q: What is diaphragm material?

A: Other materials used for diaphragms include polypropylene (pp), polyetheretherketone (peek) polycarbonate (pc), mylar (pet), silk, glassfibre, carbon fibre, titanium, aluminium, aluminium-magnesium alloy, nickel, and beryllium.

Q: What is the best rubber for diaphragms?

A: For diaphragms, epdm, fkm, nitrile rubber (nbr), hnbr and silicone rubber are the most commonly used rubber materials bonded to metal. For each material, there is a special adhesive required.

Q: How does a diaphragm pump work?

A: Air operated double diaphragm pump, also known as an aodd pump, membrane pump, pneumatic diaphragm pump is a positive displacement pump that uses compressed air as its power source. Compressed air is transferred from one chamber to another by a connected shaft, allowing the chambers to move simultaneously.

Q: How are rubber diaphragms made?

A: The molding of rubber and elastomer compounds for the rubber diaphragms is achieved by using heat and pressure to push the substance into a shape. Compression, transfer and injection methods can be used to mold rubber diaphragms of elastomers.

Q: What is the strongest flexible rubber?

A: Silicone belongs to its own category of rubbers that is outside of natural and synthetic varieties. Versatile and highly durable, silicone rubber is used to make a wide variety of consumer products. It is resistant to both high and low temperatures, remaining flexible even in extreme conditions.

Q: Is a diaphragm a gasket?

A: A diaphragm (or chemical) seal is a protective device used to isolate a pressure sensing instrument from the process fluid being monitored. A diaphragm seal is a device consisting of a diaphragm clamped between two suitable housings that are properly gasketed to prevent leakage of liquid or gas.

Q: What is the use of rubber diaphragm?

A: Rubber diaphragms are flexible rubber membranes, sometimes reinforced with fabric, strategically placed to prevent unwanted transfer of substances between two places by creating a seal. They can be used to separate two gasses, two liquids, or one gas and one liquid that should not mix.

Q: Is a diaphragm a seal?

A: In mechanical engineering, a diaphragm seal is a flexible membrane that seals and isolates an enclosure. The flexible nature of this seal allows pressure effects to cross the barrier but not the material being contained.

Q: What are rubber diaphragms used for?

A: Rubber diaphragms are flexible rubber membranes, sometimes reinforced with fabric, strategically placed to prevent unwanted transfer of substances between two places by creating a seal. They can be used to separate two gasses, two liquids, or one gas and one liquid that should not mix.
