Name: China Customized Rubber Filter Belt With Ripple Curbing Manufacturers, Suppliers, Factory - Sunny Rubber
Brand: Sunny
SKU: 237624995

Rubber Filter Belt With Ripple Curbing

Details:

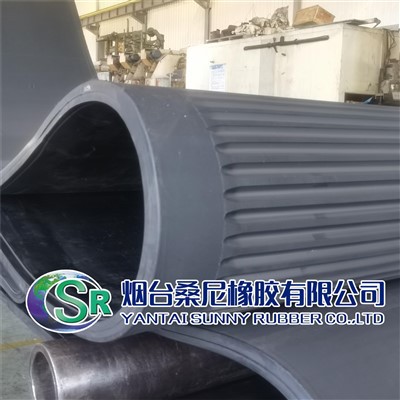

Rubber filter belt slab is key part of vacuum belt filter( rubber belt vacuum filter). The carcass of belt is made of high quality polyester canvas or polyester fabric. Rubber cover material can be varied by changing proportion of elements, which uses one-time vulcanization process for forming, satisfying different working conditions.

Send Inquiry

Download

Description

Technical Parameters

Product Introduction:

201908261148189759993

Structure of rubber drainage belt slab:

It includes top rubber cover, bottom rubber cover, carcass, drainage holes, drainage grooves.

Some customers will need cloth impression on top surface.

product-1-1

Technical parameter

Effective filtration width(mm)	Belt width(mm)	Recommended thickness(mm)	Fabric layers
500	600	20	3
800	900	20	3
1000	1100	22-25	4
1300	1400	22-25	4
1500	1600	22-28	4
1800	1900	25-28	4
2000	2100	28	4
2500	2600	28-30	4
2800	2900	28-30	4
3000	3100	28-35	4
3200	3300	28-35	4
4000	4100	28-40	4
4500	4600	28-42	4

Rubber Curb

downLoadImg 2

Technical advantage:

Yantai Sunny Rubber Co.,Ltd founded in 2005, it drafted the national standard for rubber drainage belt. Measurement tolerances, rubber performance features, and other important points are stipulated in this standard.
